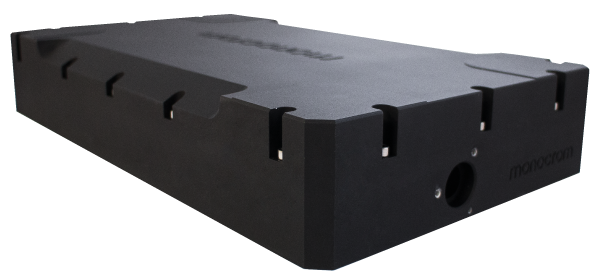

LU-LPQ-1064mJ
- MOPA laser system
- high pulse energy
- ns laser pulses
- excelent beam quality
- external trigger
- low cooling requirements
- monitor photodiode
- aiming beam
Technical specifications
| Minimum | Operation | Max. rating | |
|---|---|---|---|
| Wavelength(1) [nm] | 1064 | ||
| Pulse energy [μJ] | <0,1 | 16 | 20 |
| Repetition rate [Hz] | 1 | 100 | 100 |
| Pulse duration [ns] | 1 | 2 | 4 |
| Timing jitter [µs] | 1 | 2 | 5 |
| Average power [W] | 0,8 | 1,6 | 2 |
| Output beam size [mm] | 0,9 | ||
| Full angle divergence [mrad] | 3,5 | ||
| Beam circularity | 1:1,05 | 1:1,1 | |
| Pointing stability [µrad] | 50 | ||
| Operation temperature [ºC] | 20 | 25 | 40 |
| Storage temperature [ºC] | -10 | 75 | |
| Warm up time(2) [min] | 5 | 10 | |
| Thermal stabilisation | by TEC | ||
| Laser head(3) dimensions | 150x200x300 | ||
| Controlling unit dimension | Rack 19 inch compatible | ||
| Laser Class (EN-60825) | 4 | ||
| Expected life-time [hours] | 10.000 |
Note: Not all maximum specifications can be achieved at a time
- The laser can be operated in a single pulse or multiple-pulses with a time gap between two successive pulses 50 ± 10 ms.
- Depending on room temperature conditions.
- The laser head housing is based on a very robust and sealed/dust-proof design.
This content cannot be seen on mobile view. Change to PC or tablet landscape view.
Level of integration
Possible levels of integration for this product are marked in red
LI1
DIRECT DIODE
LI2
DIRECT DIODE
MICRO-OPTICS
LI3
SUB-ASSEMBLIES
MICRO-OPTICS
HOUSING
PRISM
CRISTALS
LI4
LASER SYSTEMS
MICRO-OPTICS
HOUSING
PRISM
CRISTALS
ELECTRONIC COMPONENTS
FIBER OUTPUT
We provide our laser solutions with different level of integration, from direct beam to complex systems
