Single Bar Lasers

Laser diode packages for a single laser bar with conduction or water macro-channels cooling with great heat dissipation and an unprecedent low smile. Our single bar diode laser mounts are clamped with Monocrom Solder-free laser bar Clamping™ Technique that improves overall performance and prolongs laser diode life-time.

Choose between different architectures and tune the central wavelength to your needs. Full range of wavelengths available: 760 nm, 808nm, 880 nm, 915 nm, 940 nm, 976 nm, 1060 nm, 1470 nm, 1550 nm, 1940 nm.



actively cooled diode laser

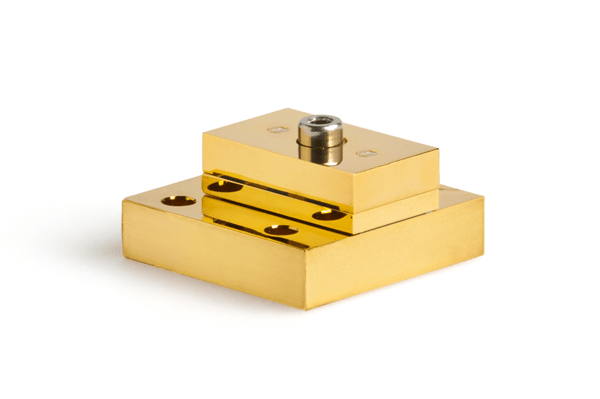

Monocrom conductive diode bar mount
wdt_ID Wavelength (nm) Output Power (W) Operation Mode Cooling Collimation Wavelength stabilization Comments Datasheet
1 808 up to 100 / laser bar CW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
2 808 up to 500 / laser bar QCW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
3 808 up to 100 / laser bar CW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
4 808 up to 500 / laser bar QCW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
5 880 up to 100 / laser bar CW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
6 880 up to 500 / laser bar QCW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
7 880 up to 100 / laser bar CW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
8 880 up to 500 / laser bar QCW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
9 915 up to 200 / laser bar CW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
10 915 up to 200 / laser bar QCW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
11 915 up to 200 / laser bar CW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
12 915 up to 200 / laser bar QCW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
13 940 up to 120 / laser bar CW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
14 940 up to 300 / laser bar QCW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
15 940 up to 120 / laser bar CW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
16 940 up to 300 / laser bar QCW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
17 976 up to 150 / laser bar CW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
18 976 up to 400 / laser bar QCW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
19 976 up to 150 / laser bar CW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
20 976 up to 400 / laser bar QCW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
21 1060 up to 100 / laser bar CW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
22 1060 up to 250 / laser bar QCW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
23 1060 up to 100 / laser bar CW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
24 1060 up to 250 / laser bar QCW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
25 1470 up to 25 / laser bar CW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
26 1470 up to 25 / laser bar QCW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
27 1470 up to 25 / laser bar CW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
28 1470 up to 25 / laser bar QCW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
29 1550 up to 25 / laser bar CW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
30 1550 up to 25 / laser bar QCW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
31 1550 up to 25 / laser bar CW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
32 1550 up to 25 / laser bar QCW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
33 1940 up to 15 / laser bar CW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
34 1940 up to 15 / laser bar QCW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
35 1940 up to 15 / laser bar CW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
36 1940 up to 15 / laser bar QCW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount
37 760 up to 40 / laser bar CW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
38 760 up to 200 / laser bar QCW Active FAC / SAC / BT by the end of the year 2-sides water cooling AS-Mount
39 760 up to 40 / laser bar CW Passive FAC / SAC / BT by the end of the year Smile < 0.1 AS-Mount
40 760 up to 200 / laser bar QCW Passive FAC / SAC / BT by the end of the year Smile < 0.1 CS-Mount

Level of integration

Possible levels of integration for this product are marked in red

LI1
Li1-red
DIRECT DIODE
LI2
Level-of-integration--2
DIRECT DIODE

MICRO-OPTICS

LI3
Level-of-integration-3
SUB-ASSEMBLIES

MICRO-OPTICS

HOUSING

PRISM

CRISTALS

LI4
Level-of-integration-4
LASER SYSTEMS

MICRO-OPTICS

HOUSING

PRISM

CRISTALS

ELECTRONIC COMPONENTS

FIBER OUTPUT

We provide our laser solutions with different level of integration, from direct beam to complex systems

Applications / Single Bar Lasers

Dermatology & aesthetics

Dermatology & Aesthetics

Diode lasers with different level of integration, from diode laser stacks up to plug & play laser modules.
Material processing

Material Processing

High power lasers for use in material manufacturing as Welding, Drilling, Cutting, Cladding, Engraving or Cleaning
Defense

Defense

Pointing laser devices and complex diode-pumped solid-state lasers for Security and Target Acquisition applications and as LiDAR sources.
Sensing for food industry

Sensing for Food Industry

Diode lasers for quality control of optimized industrial processes as sorting in free fall and classification

Your custom laser

We develop your laser solutions, to your needs. Fill in the form to define your desired parameters.
